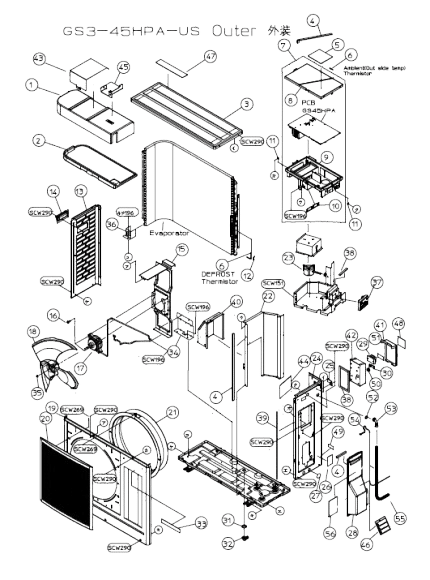

GS3-45HPA-US
| # | Part Number | Item descriptions | Notes |
|---|---|---|---|
| 3 | 44304-41584-A | Top panel | |
| 6 | 91101-45340 | HP thermistors | |
| 7 | 40105-11384 | PCB Assembled | Drawing item # 4-11 |
| 17 | 93501-54240 | Fan motor | |
| 19 | 44302-42041 | Front panel | |
| 20 | 44004-42851-A | Fan guard | |
| 23 | 91002-54020 | Reactor | |
| 37 | 40112-10141 | Operating control Panel |
Parts listed above are the spare parts that are typically in stock and cab be replaced in the field.

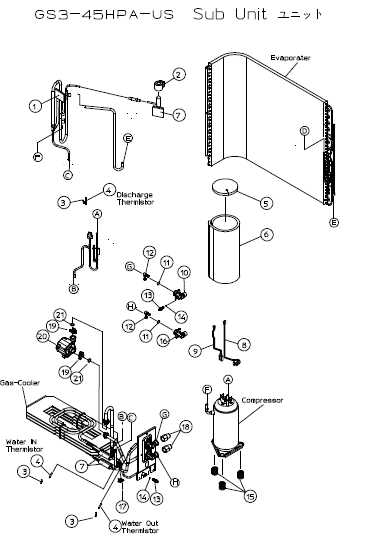

GS3-45HPA-US
| # | Part Number | Item descriptions | Notes |
|---|---|---|---|
| 3 | 41105-43710 | Thermistor clip | |
| 4 | 91101-45340 | HP Thermistors | |
| 8 | 40701-50472 | Compressor harness | |
| 10 | 43414-41540 | Heat pump water drain | |
| 11 | 40311-42230 | O Ring - P12.5 FP29 | |
| 12 | 43490-46980 | Quick connector clip | |
| 13 | 43415-40120 | Water drain plug | |
| 14 | 40311-42190 | O Ring - water drain plug | |
| 17 | 91301-54550 | Thermostat | |
| 19 | 43490-46960 | Water pump connector clip | |
| 20 | 93003-44270 | Water pump | |
| 40701-52550 | Water pump harness | ||
| 21 | 40311-42240 | O Ring - water connection valve (water pump) |
Parts listed above are the spare parts that are typically in stock and cab be replaced in the field.

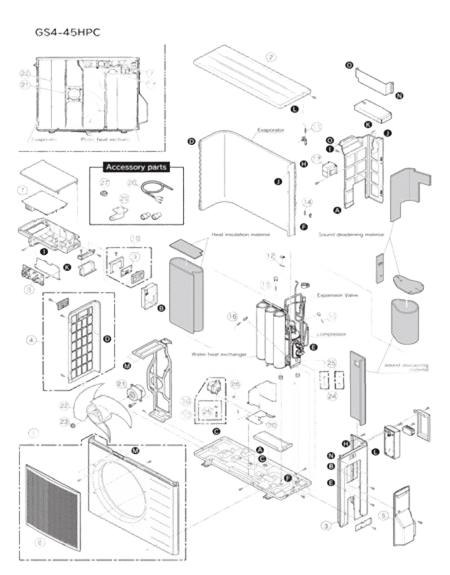

GS4 / GS5 Heat Pump Parts List
Model #: GS4-45HPC, GS4-45HPC-D, GS5-45HPC, GS5-45HPC-D
* Please call your seller / distributor for pricing and availability.
** GS4 and GS5 parts are interchangeable with the exception of Main PCB and Control PCB. While GS4 PCBs CANNOT be used for GS5 Heat Pump, GS5 PCBs can be used as replacement parts for GS4 Heat Pump.
