For virtually all commercial projects, the optimal heat pump arrangement is either a 2-high stacked configuration, opposed back-to-back or a mixed layout. This approach maximizes both footprint efficiency and system performance while staying within the 66 ft maximum pipe length limit.

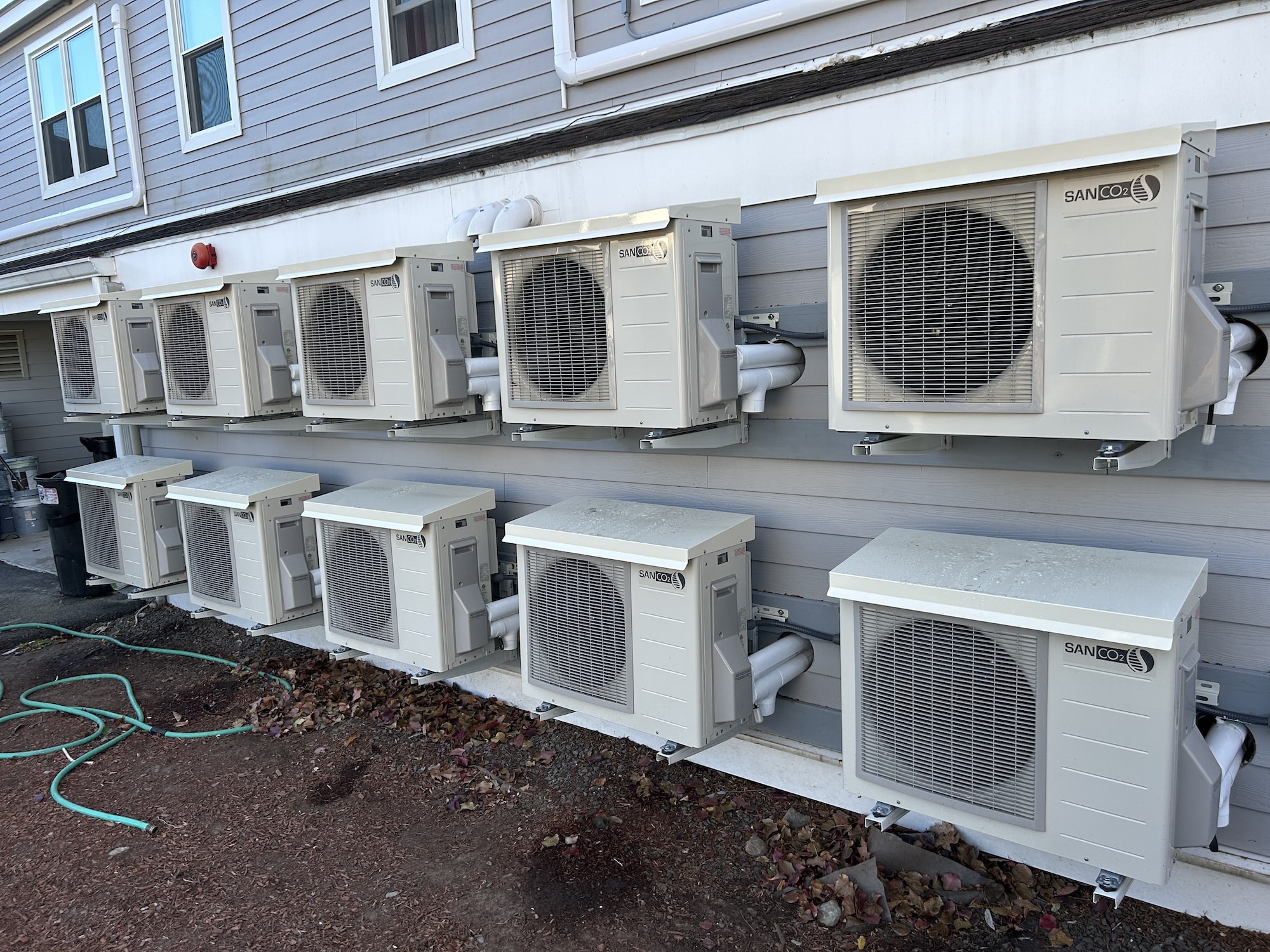

2-high stacked

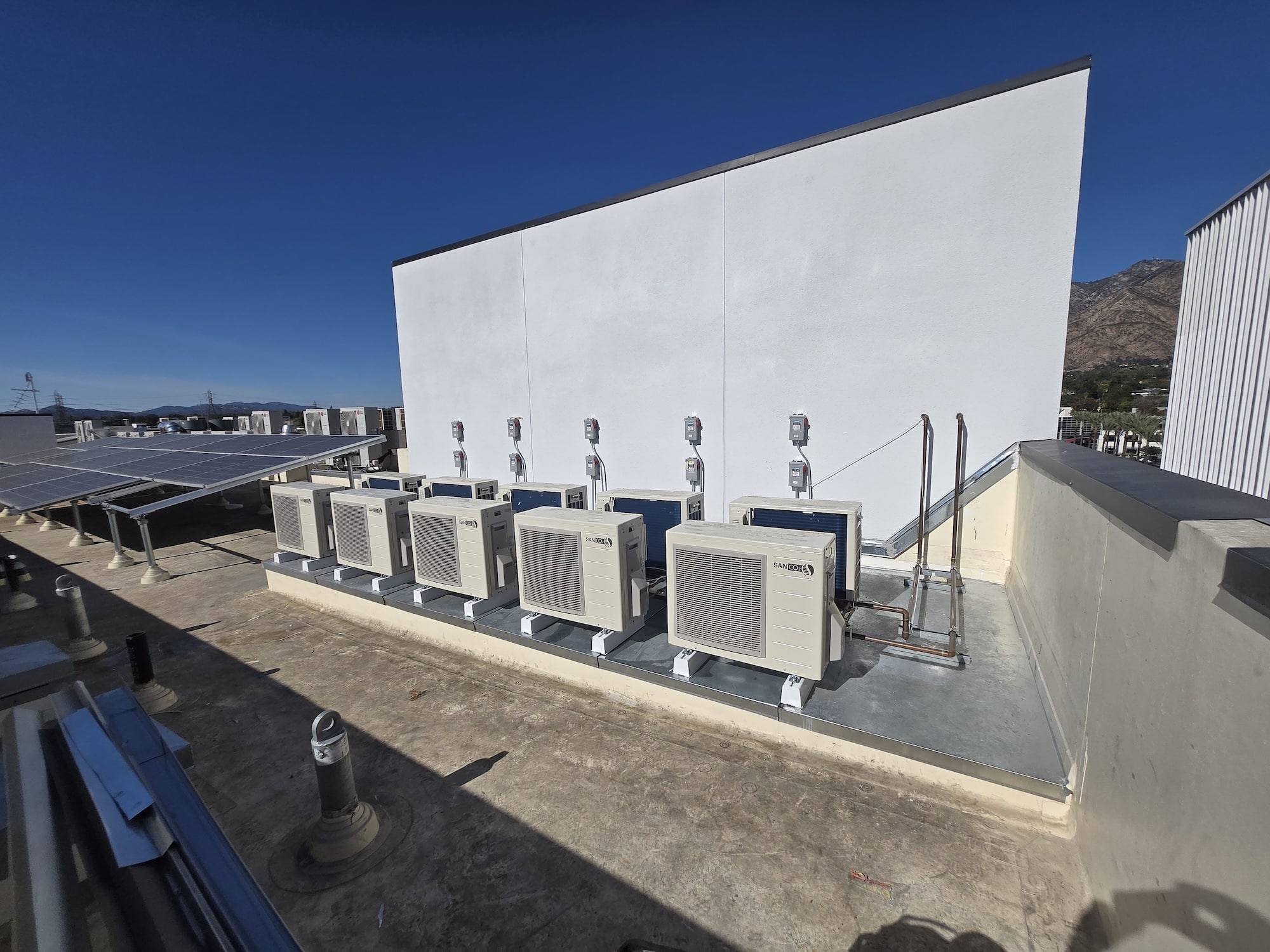

Opposed back-to-back

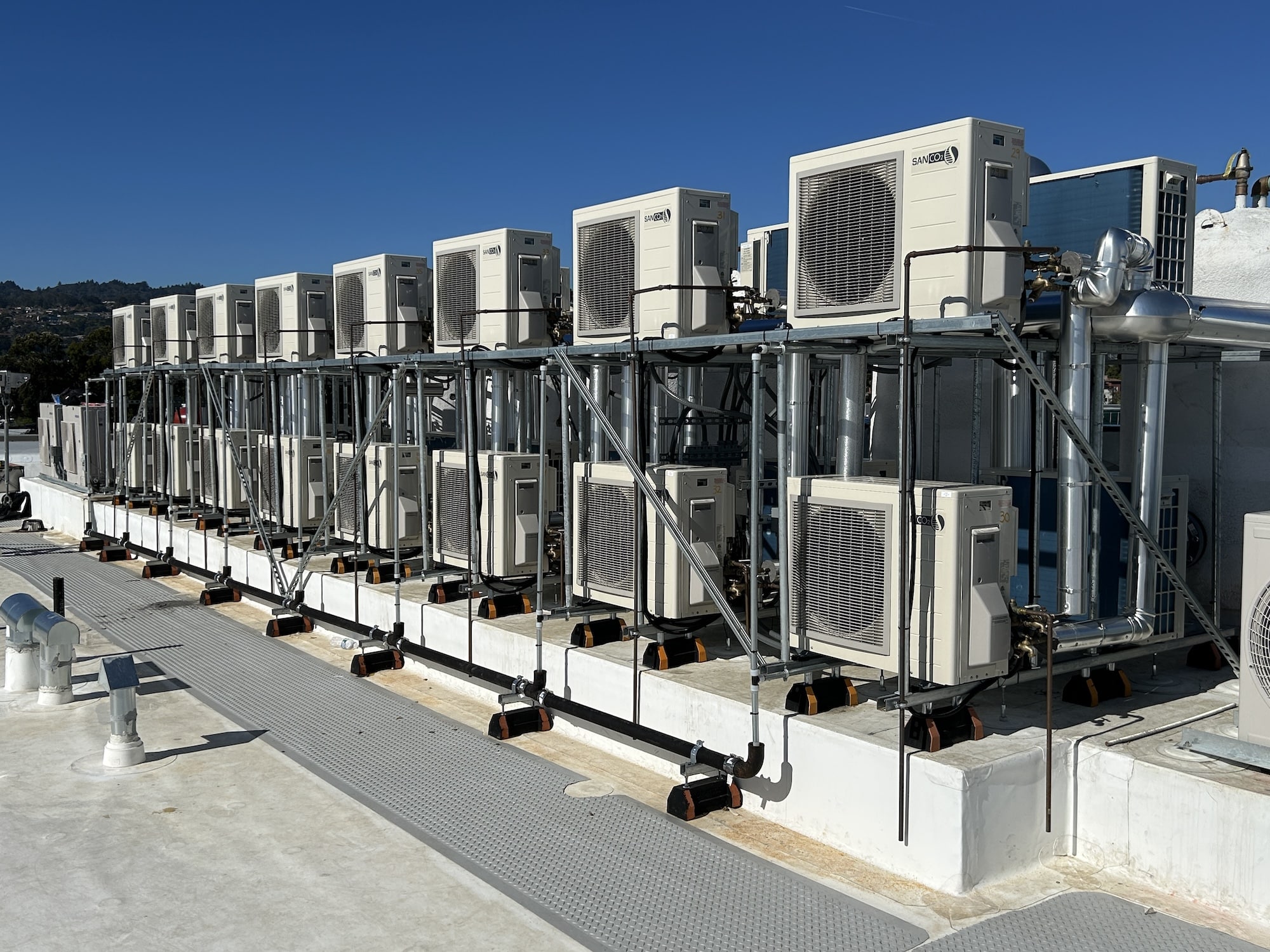

Stacked opposing
Choose from more than 20 factory-engineered split-system layouts accommodating 4 to 32 units in stacked-opposed arrangements. For more job site examples, visit the gallery.
